The Atlas 4 Car Lift: Portable Loading for Your Scooter or Wheelchair

Looking for an Atlas 4 car lift that gets your scooter or wheelchair into the car without straining your back or drilling into your vehicle? The Atlas 4 is Monarch Mobility’s portable, self-installing car lift, built to load folding scooters and electric wheelchairs with the push of a remote rather than a permanent fixture bolted into your trunk. It’s designed for people who want to keep driving themselves places, running errands, visiting family, taking a spontaneous trip, without needing a second pair of hands every time.

A spare battery for the Atlas 4 is also available.

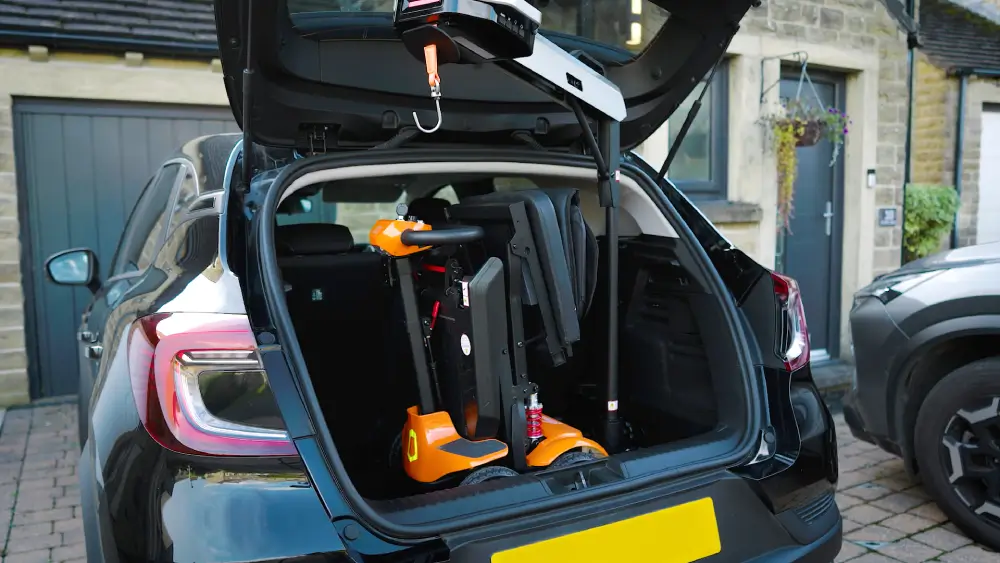

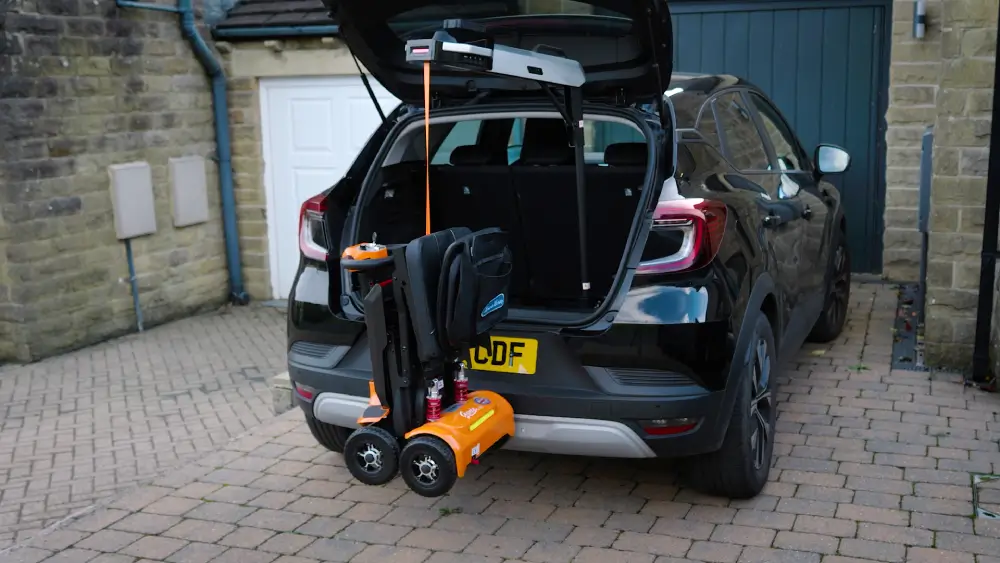

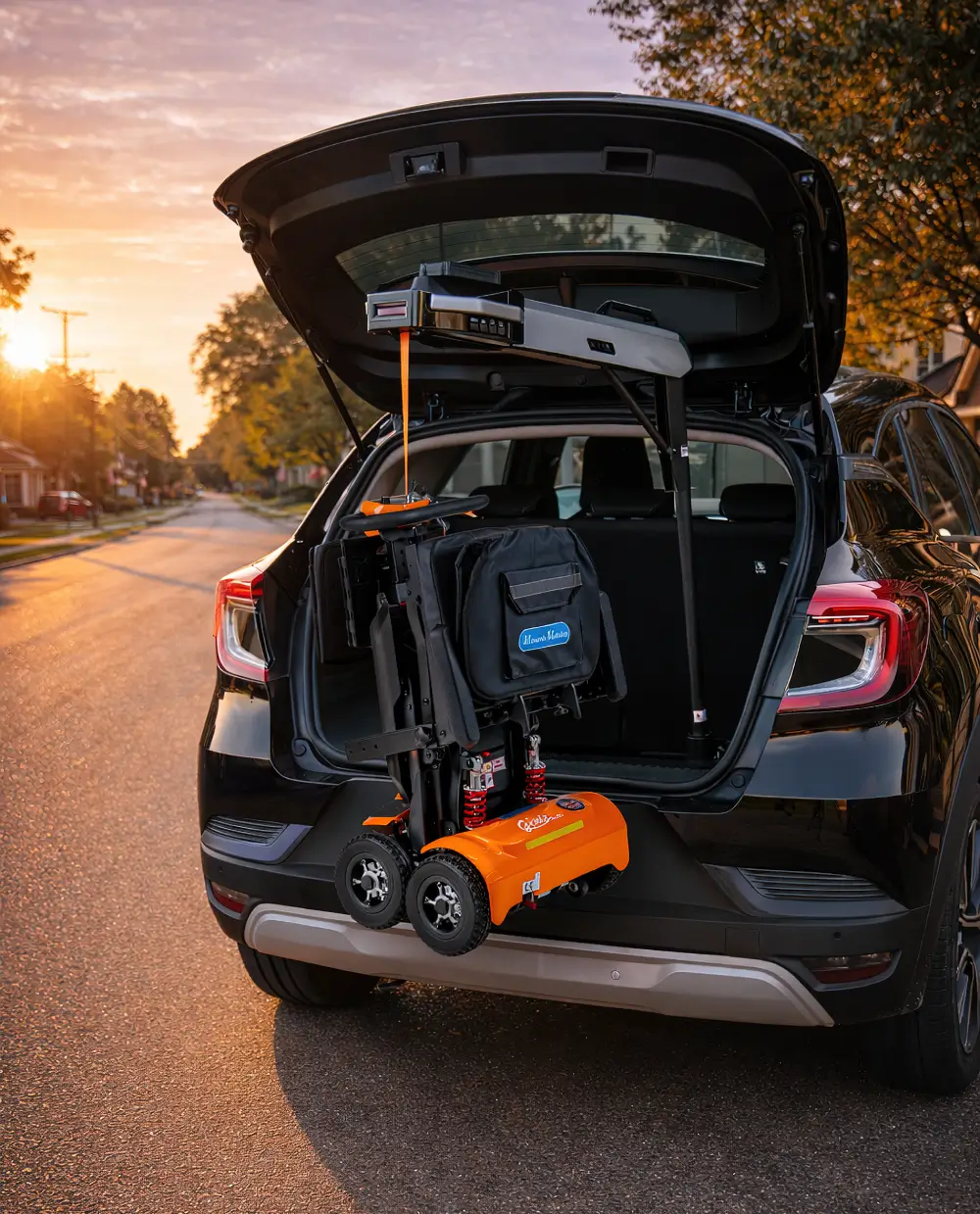

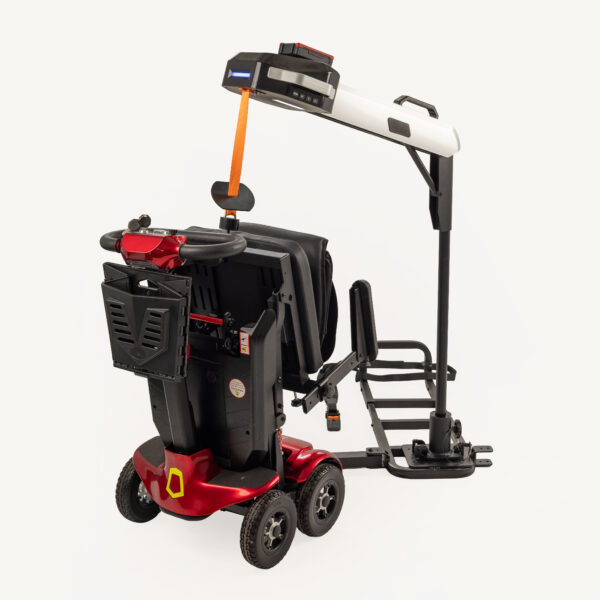

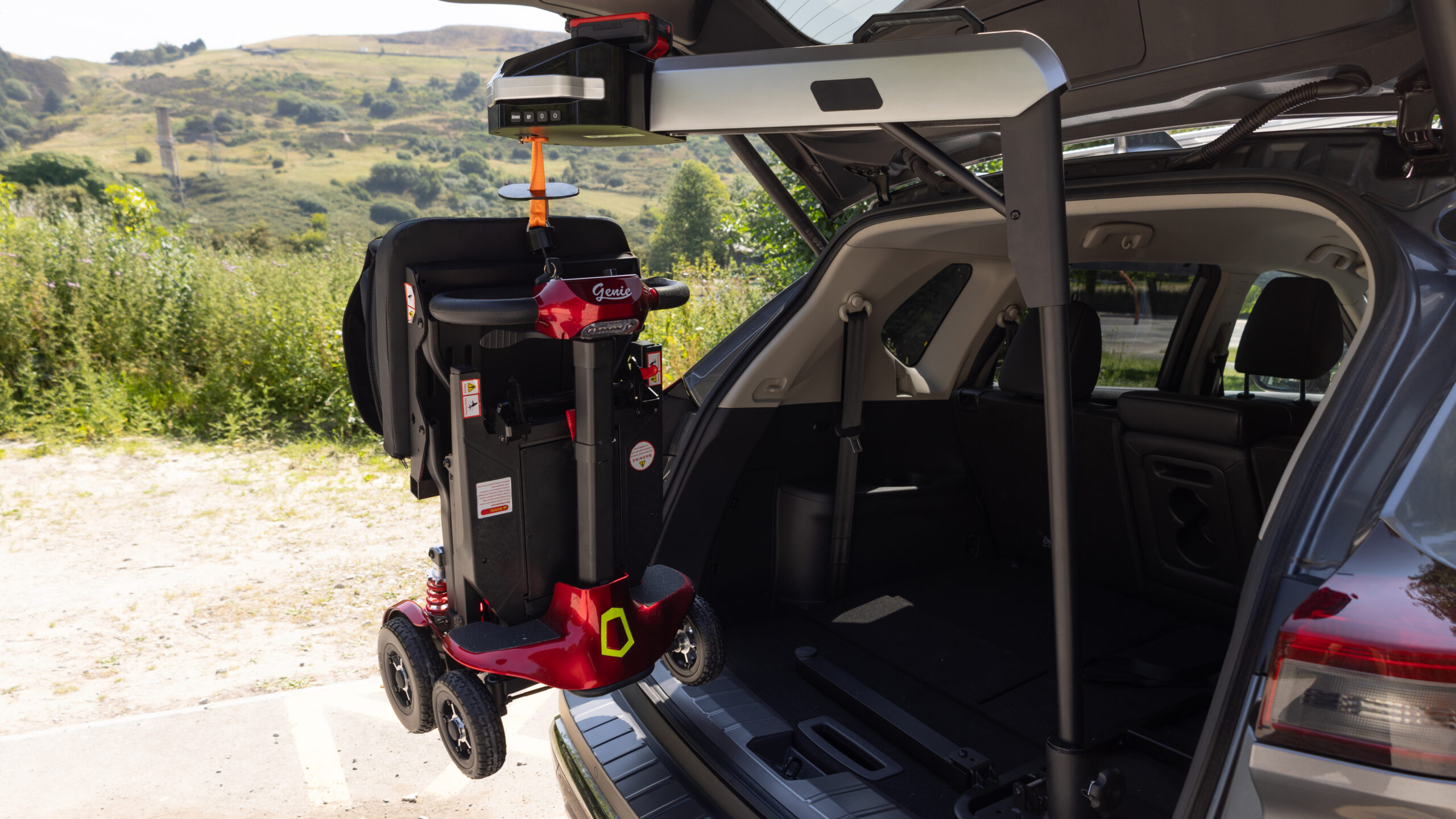

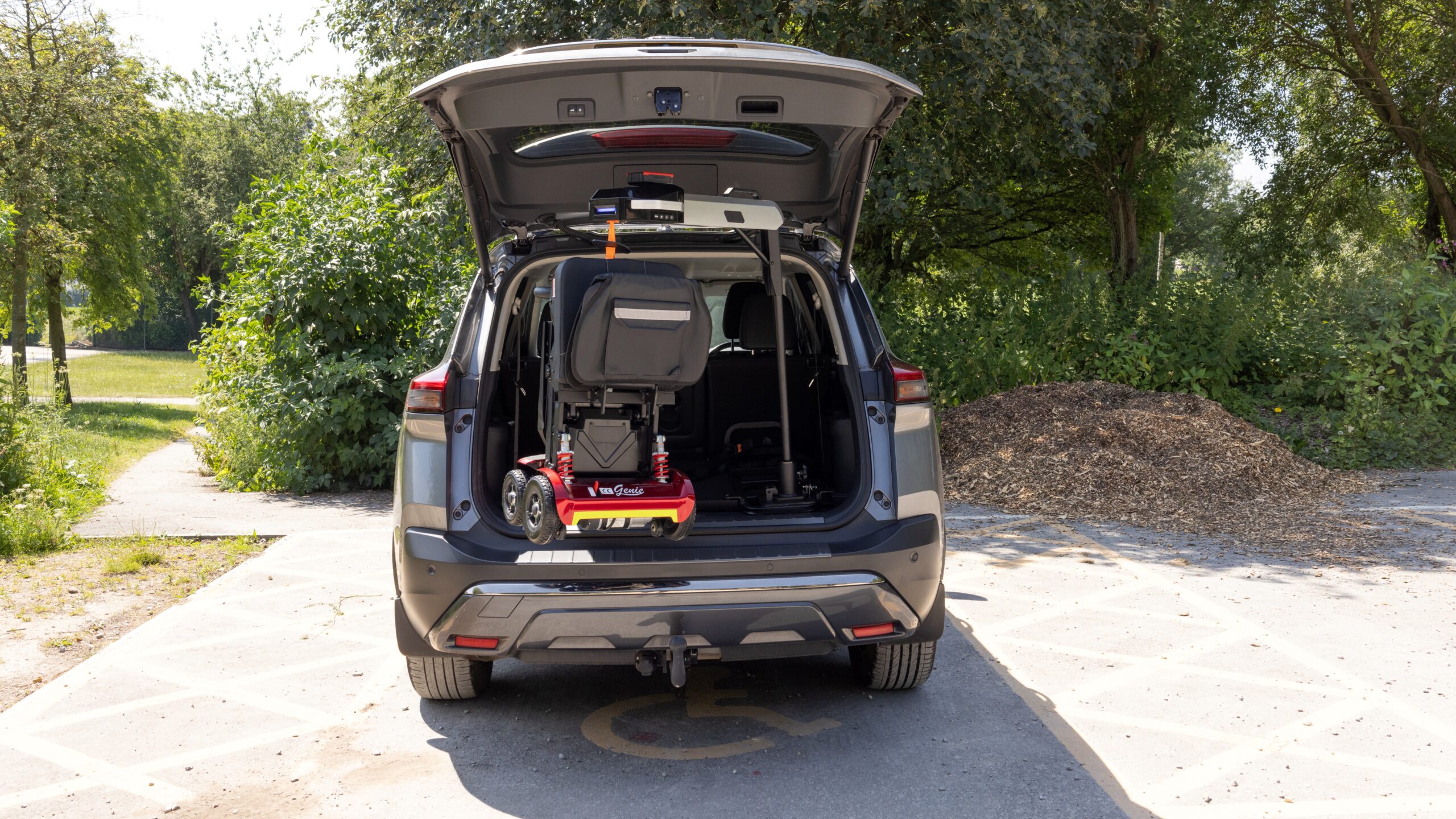

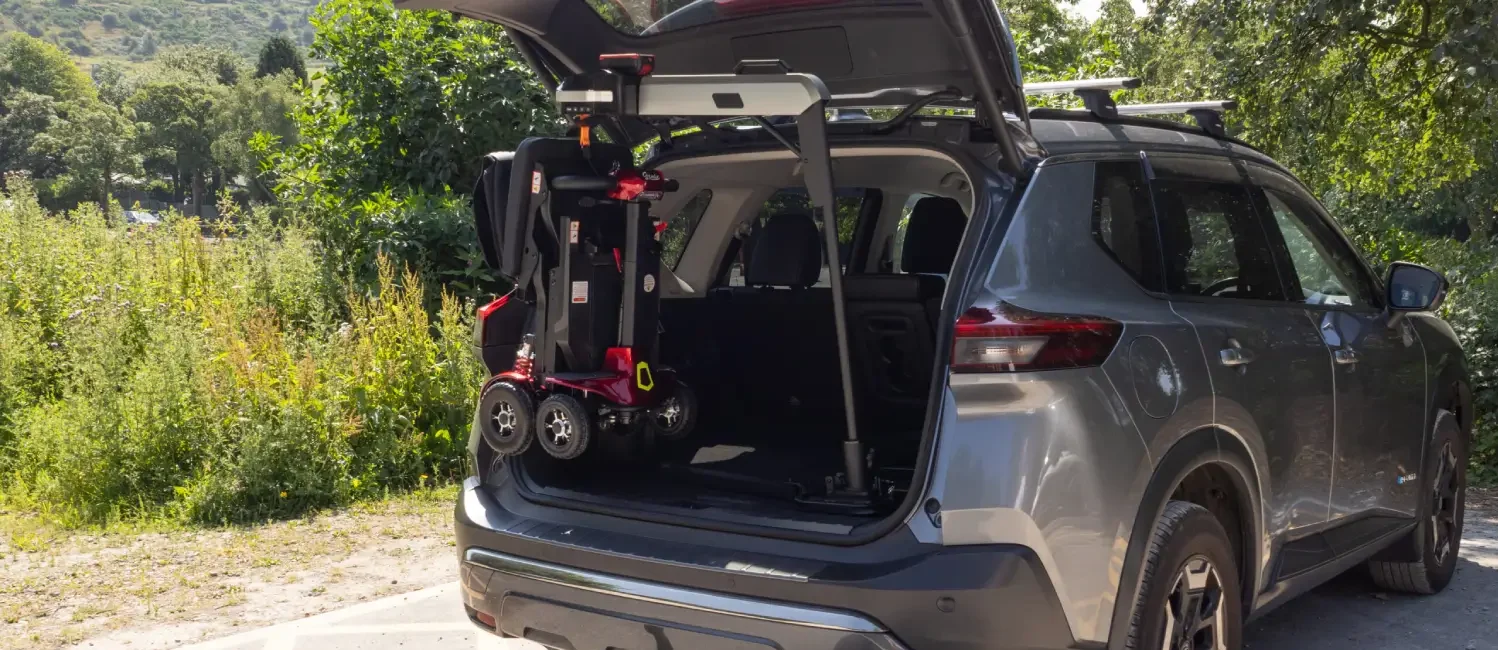

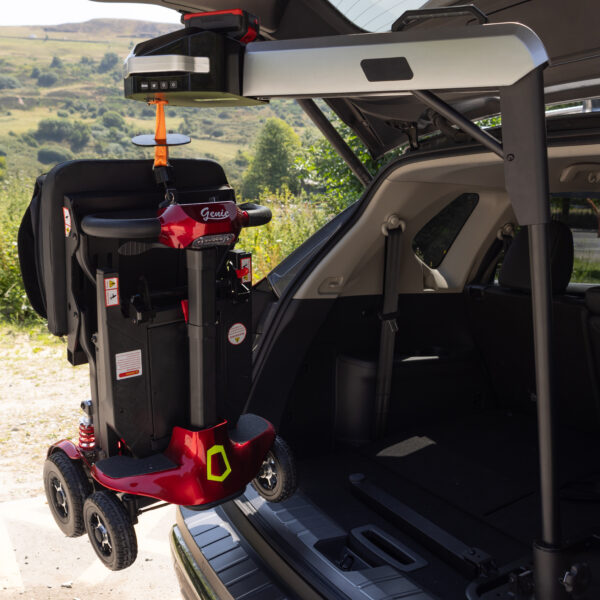

Atlas 4 car lift loading a mobility scooter into a car trunk at the beach

Max User Weight Icon Lifting Capacity 88 lbs
Battery Power Icon Battery Power 2.6Ah Lithium Battery
Operation Type Icon Operation Remote-Controlled

FDA Class II Medical Device

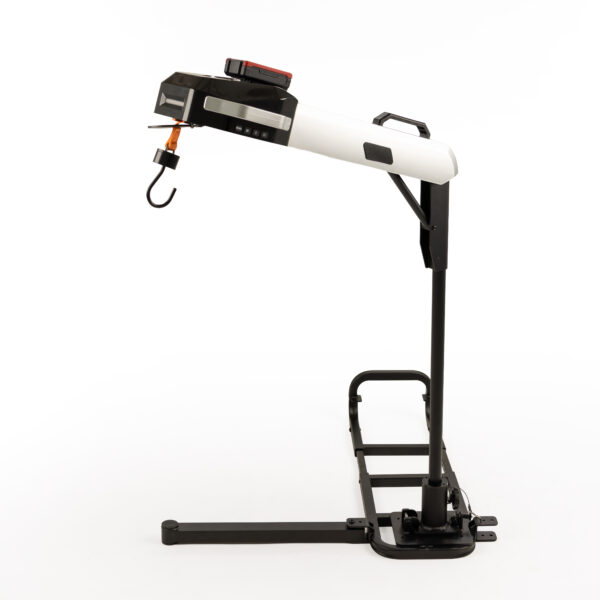

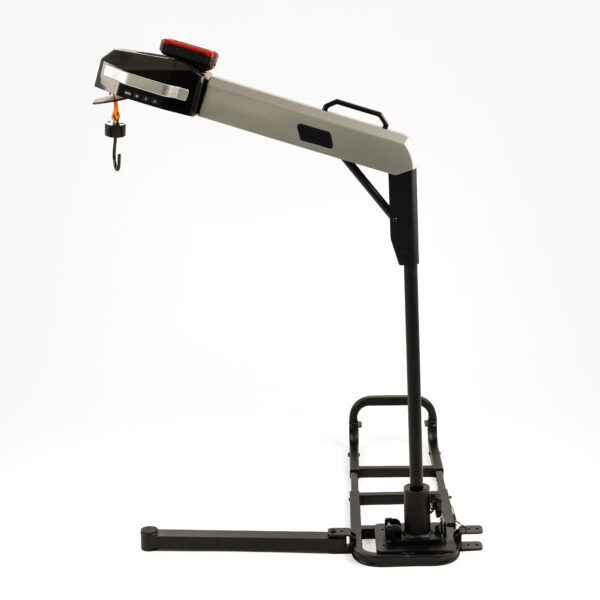

What Is the Atlas 4 Car Lift?

Unlike traditional car lifts that require a professional installer and permanent hardware, the Atlas 4 sets up on its own and moves between vehicles whenever you need it to. It's compatible with folding mobility scooters and electric wheelchairs, so it works whether you're loading a Genie, a Supa Carbon Lite, an Ezi Fold Carbon, or another compact model. Monarch recommends confirming vehicle compatibility with your dealer before ordering, since trunk space and setups vary from car to car.

How the Atlas 4 Installs Without Tools or Drilling

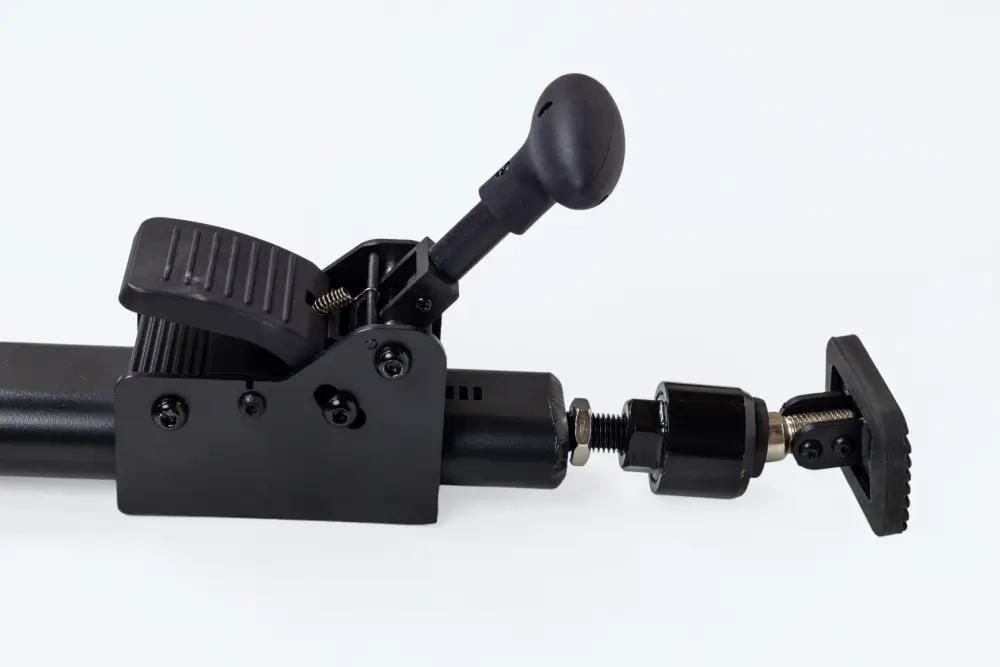

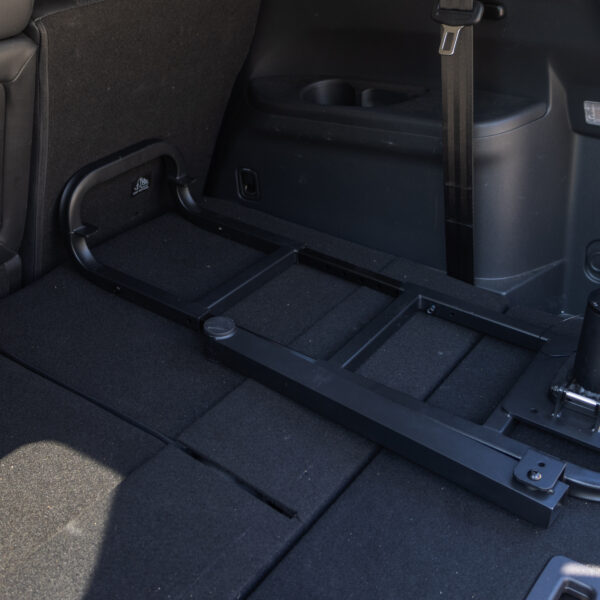

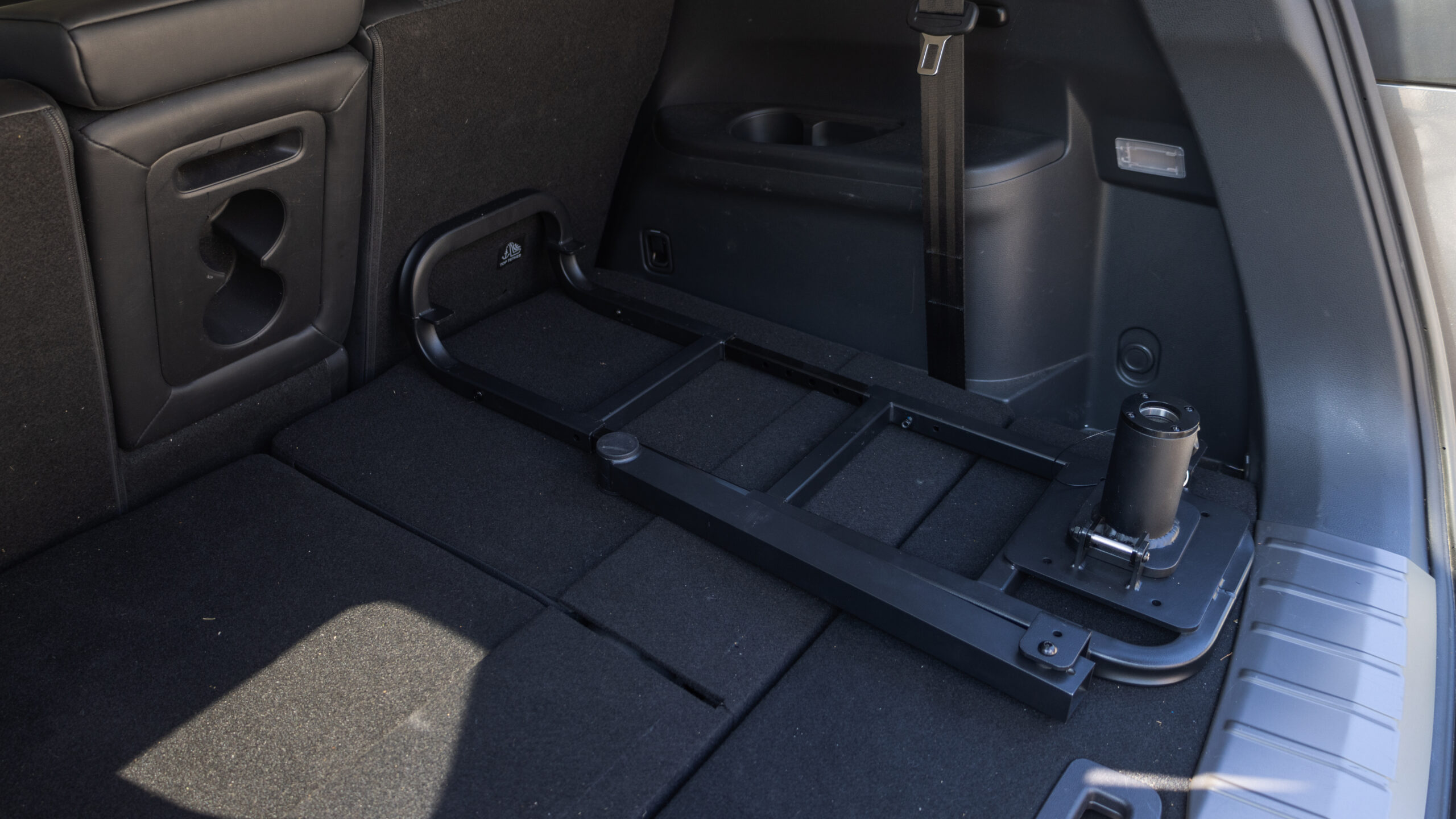

The Atlas 4 secures into place using a single strap installation system, no drilling, no wiring, and no bolts required. At just 14 lbs for its heaviest component, it's light enough to install, remove, and transfer to a different vehicle without needing a mechanic. That portability is the whole point: instead of committing to one car, the lift travels with you, which matters if your household has more than one vehicle or you regularly ride with family or friends. It also means a lift you install today doesn't lock you into today's car if your situation changes down the road.

Lifting Capacity and Battery Power

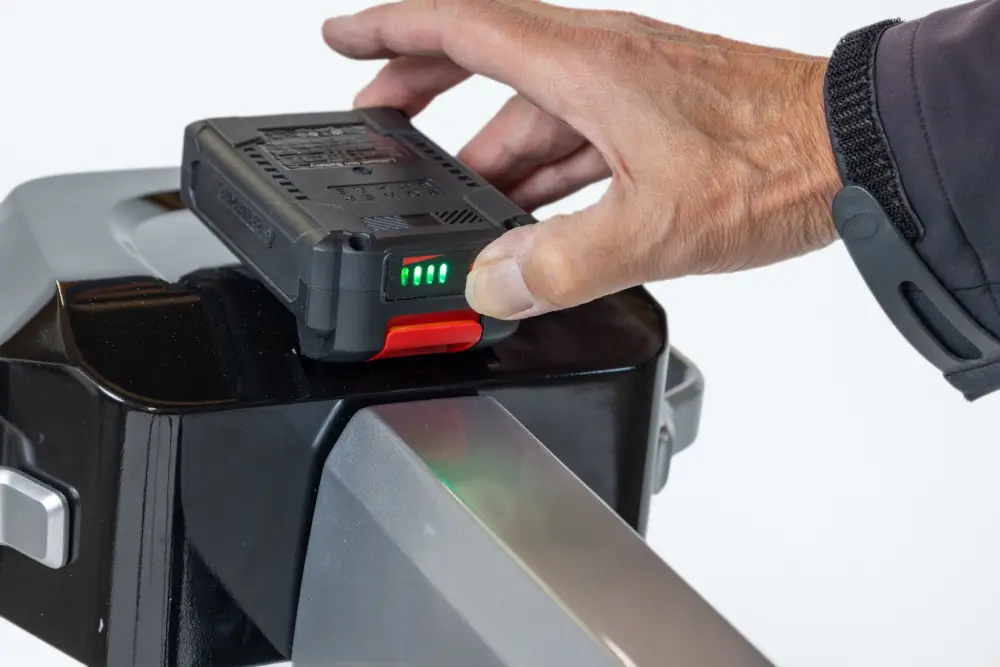

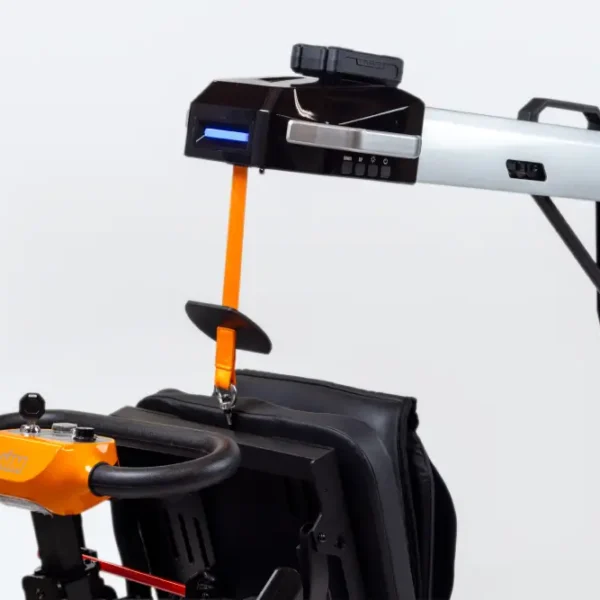

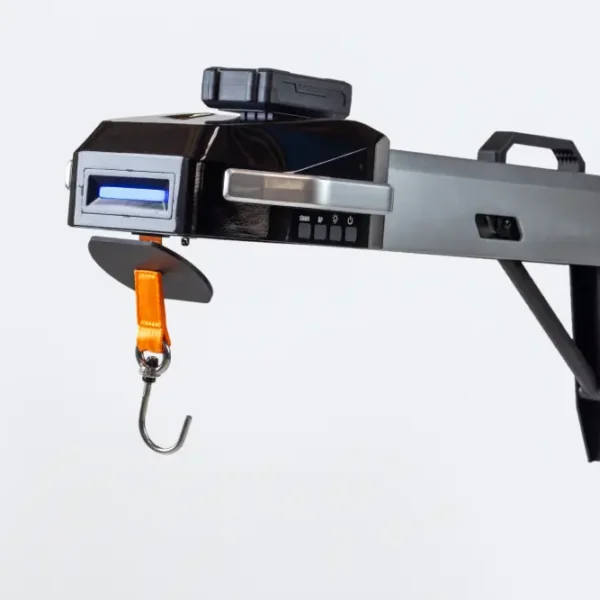

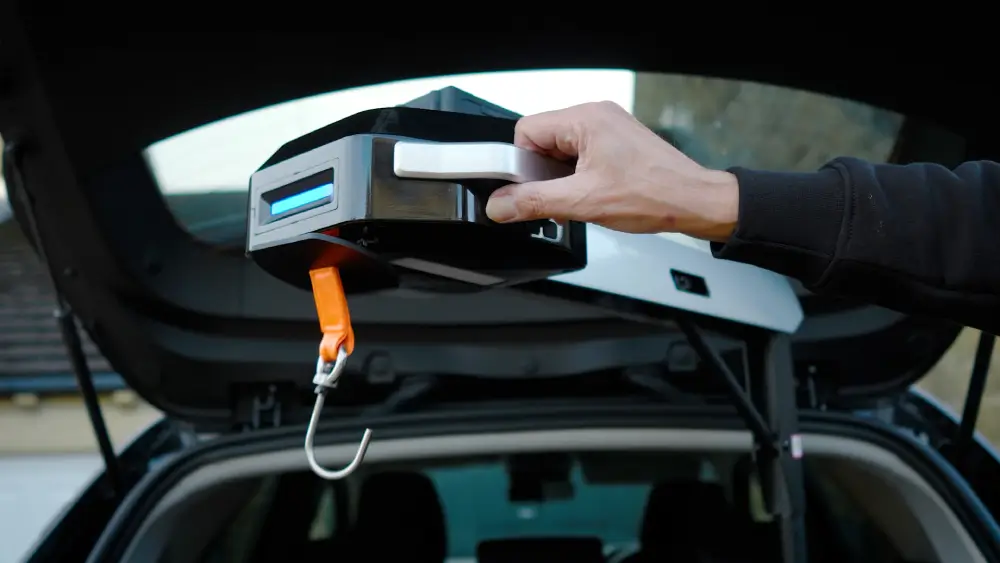

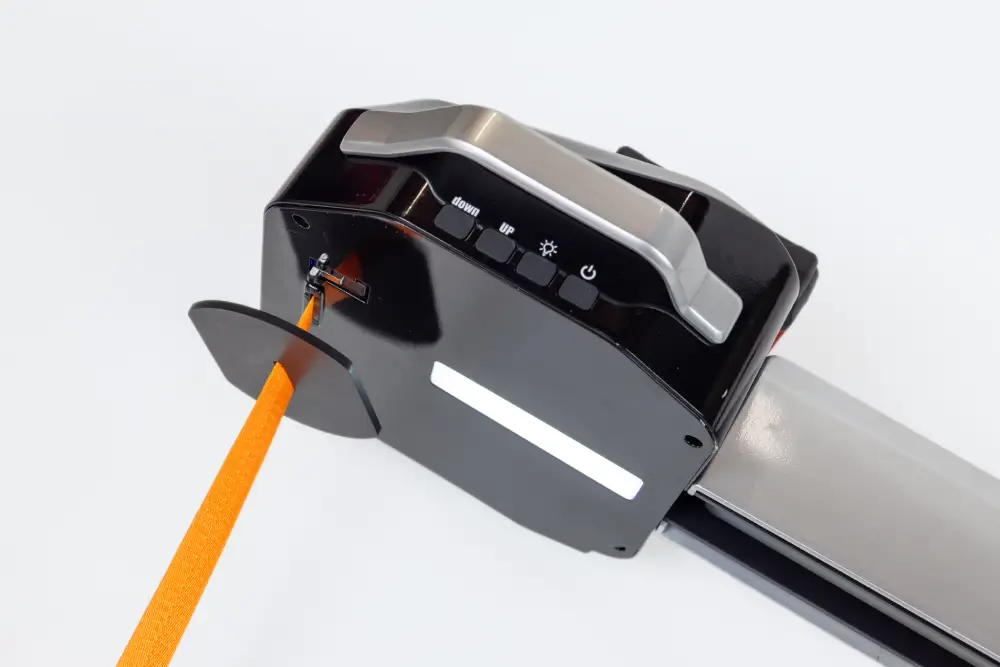

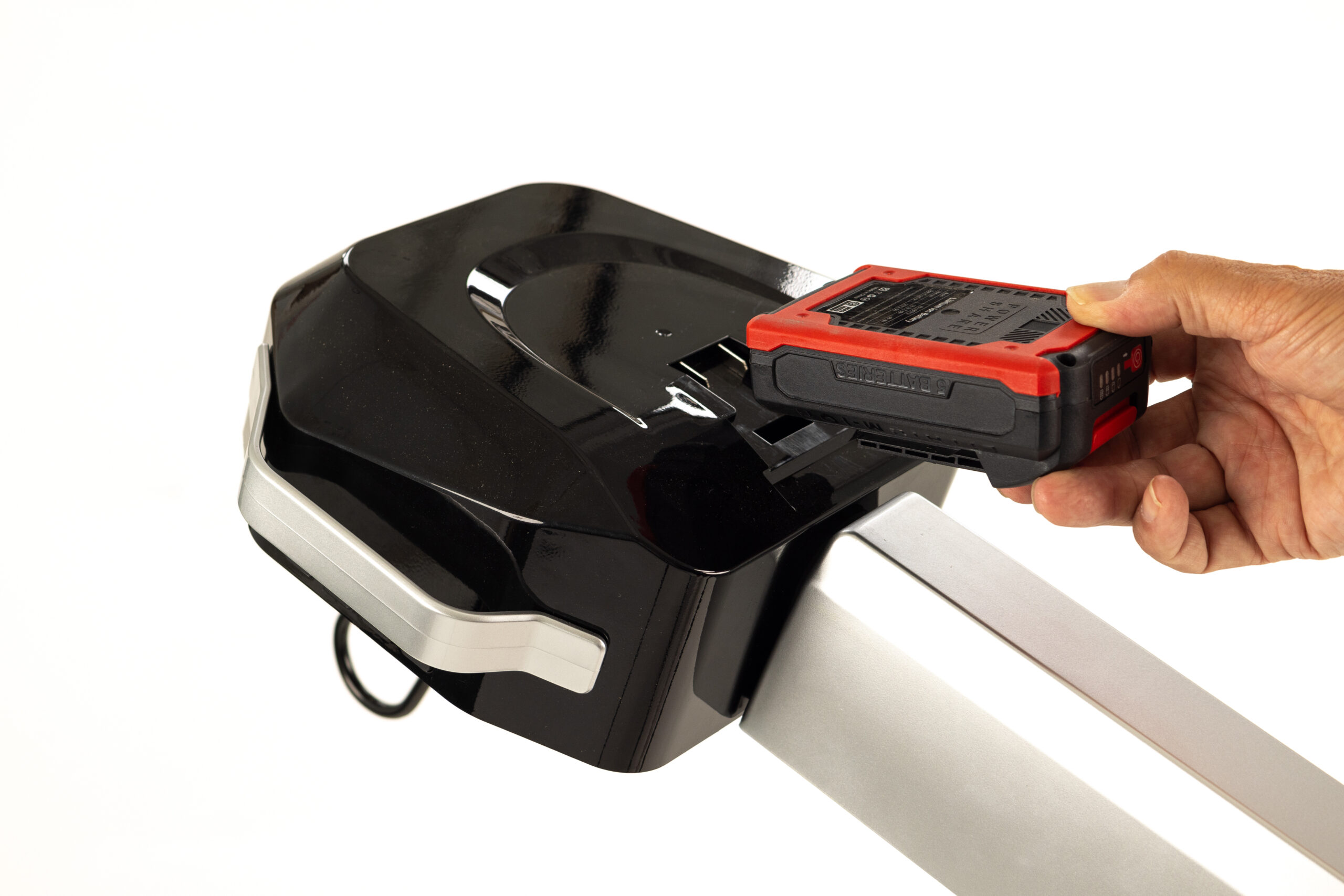

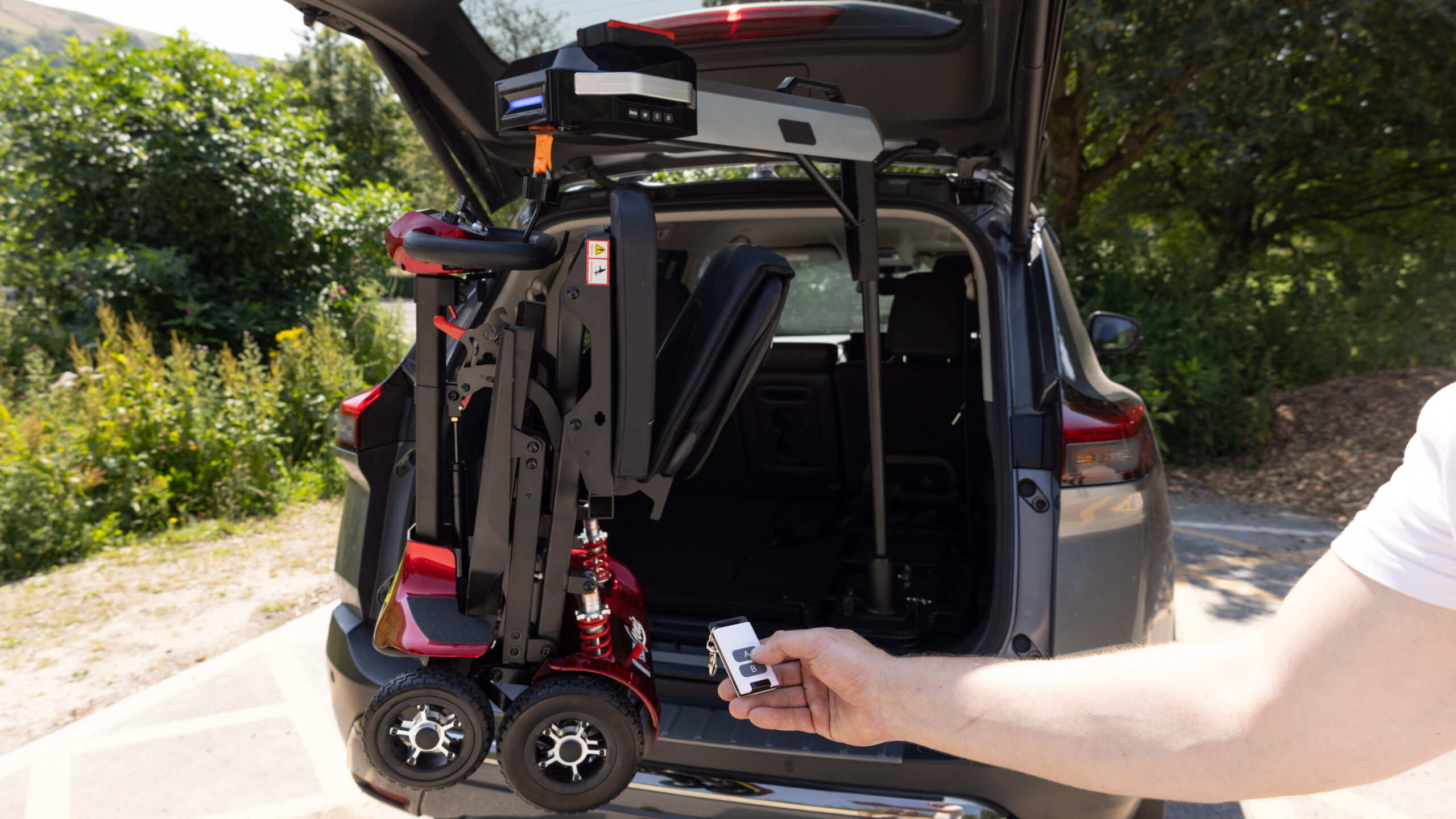

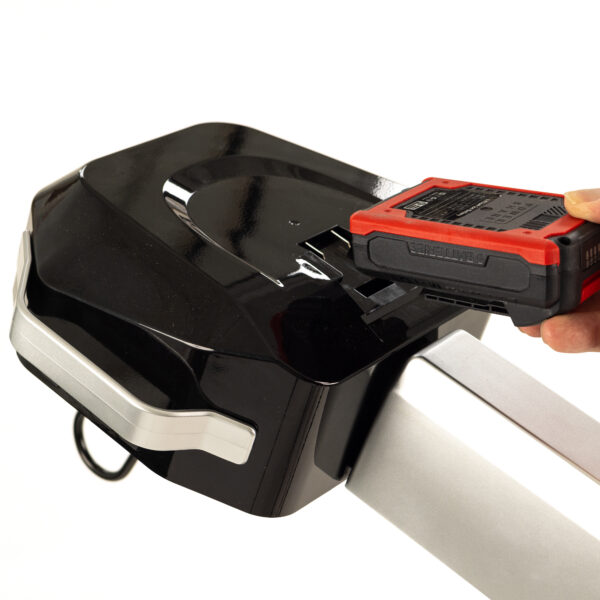

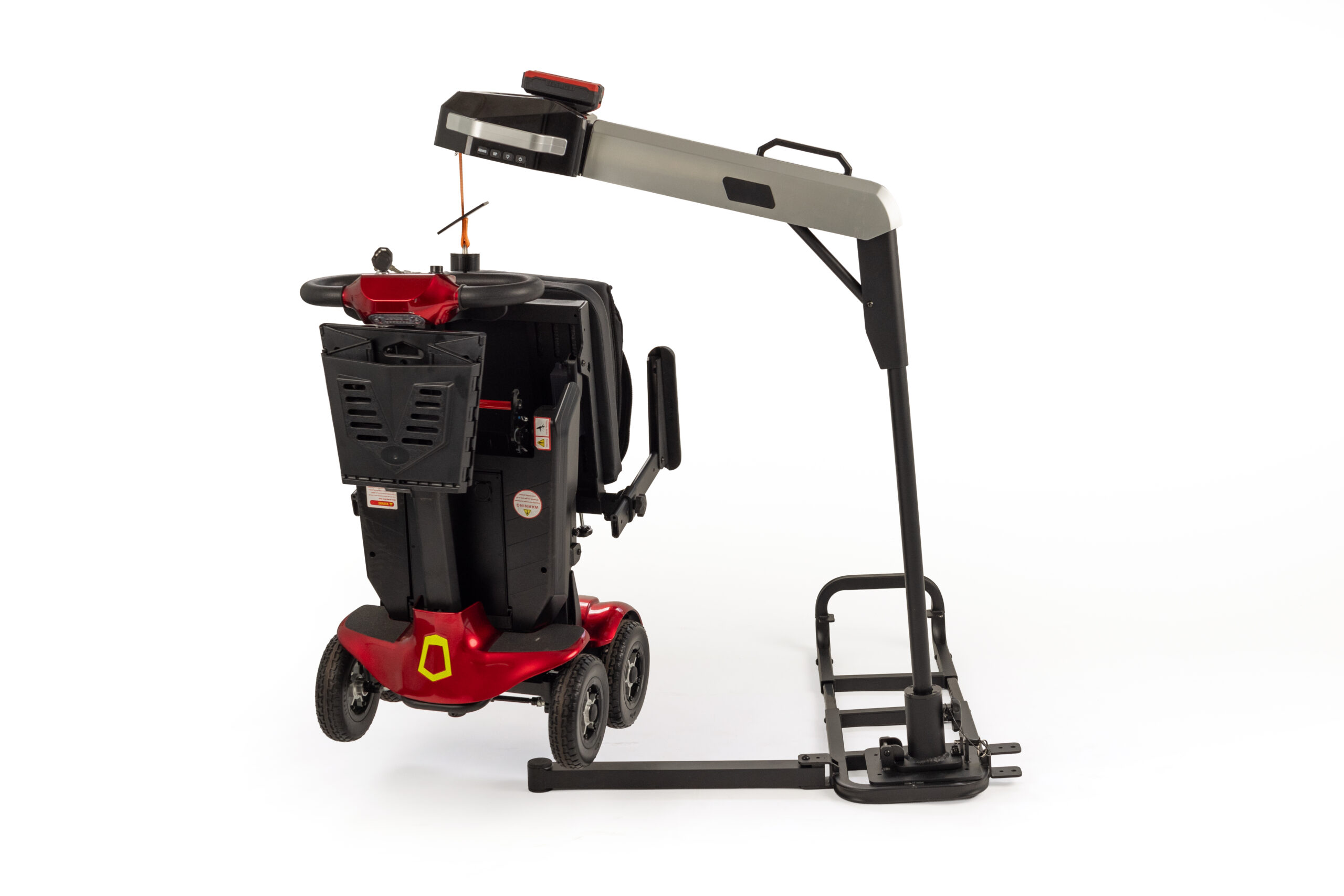

The Atlas 4 has an 88 lb lifting capacity, enough for most folding scooters and electric wheelchairs on the market. It runs on a 2.6Ah lithium battery and operates by remote control, so you can load or unload your equipment without physically hoisting it yourself, either from the side panel buttons on the unit or from the remote itself. There's something to be said for pressing a button and watching your scooter lift itself into the trunk instead of wrestling it in by hand. A built-in spotlight also helps with visibility in dark parking lots or poorly lit garages, and a battery indicator lets you keep track of charge level before you head out for the day.

Compact and Travel-Friendly Design

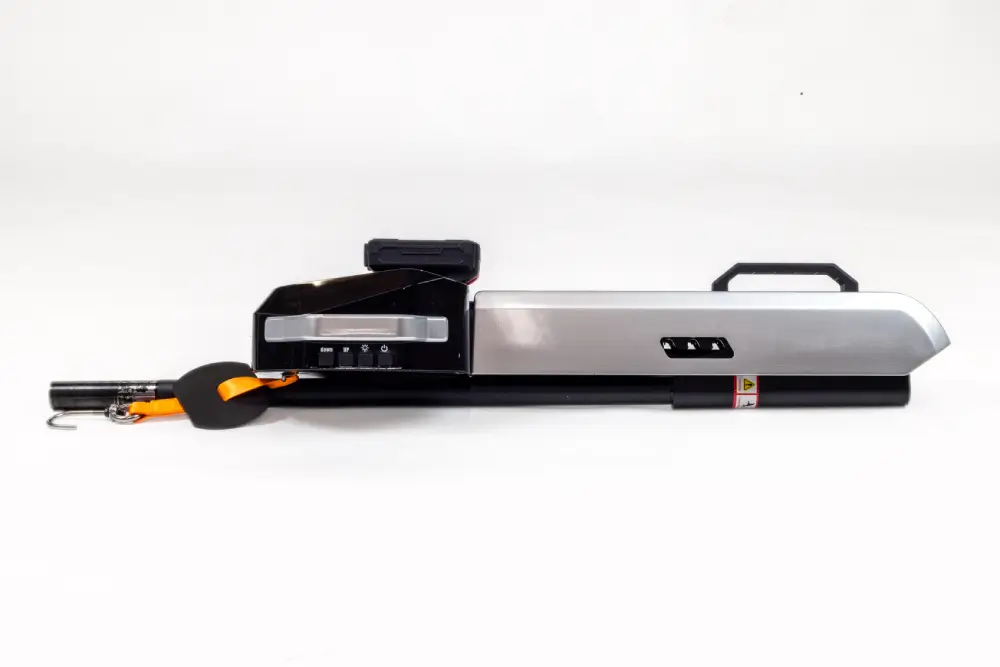

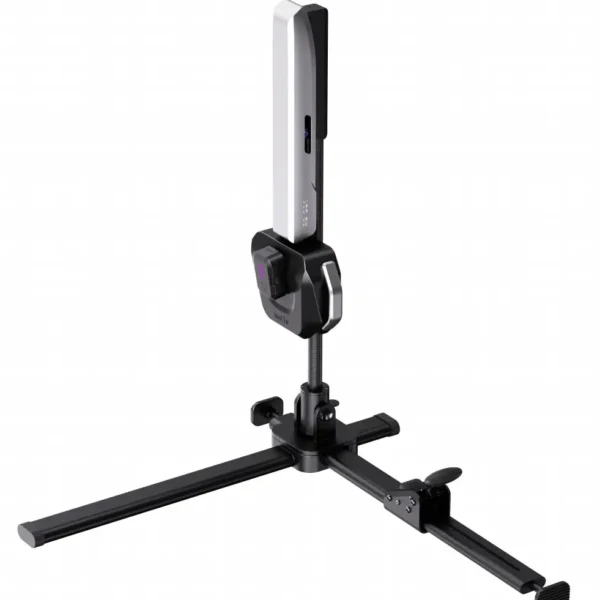

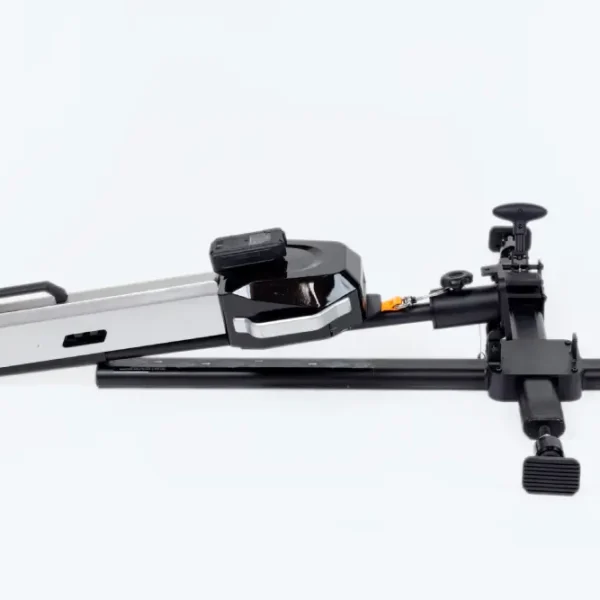

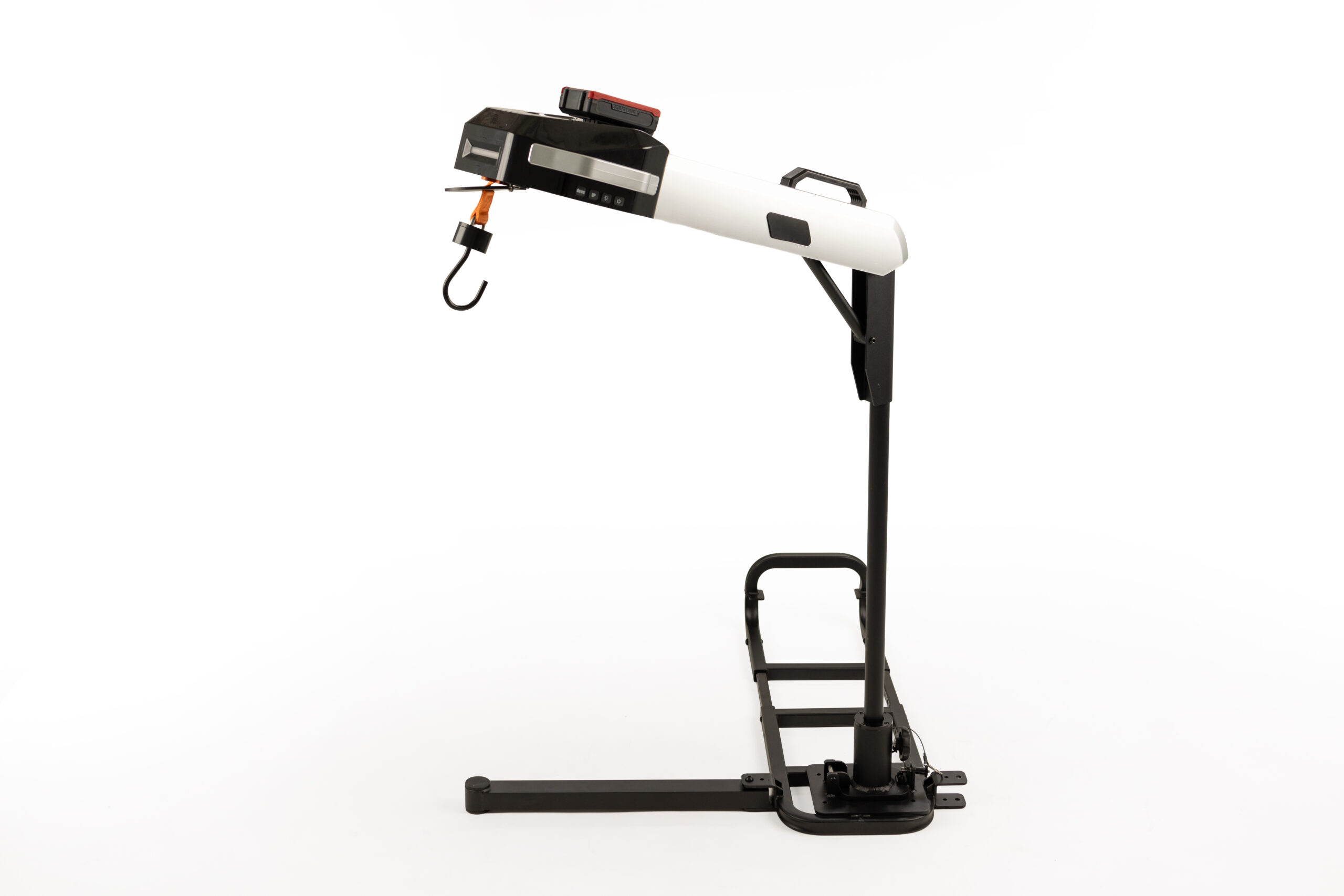

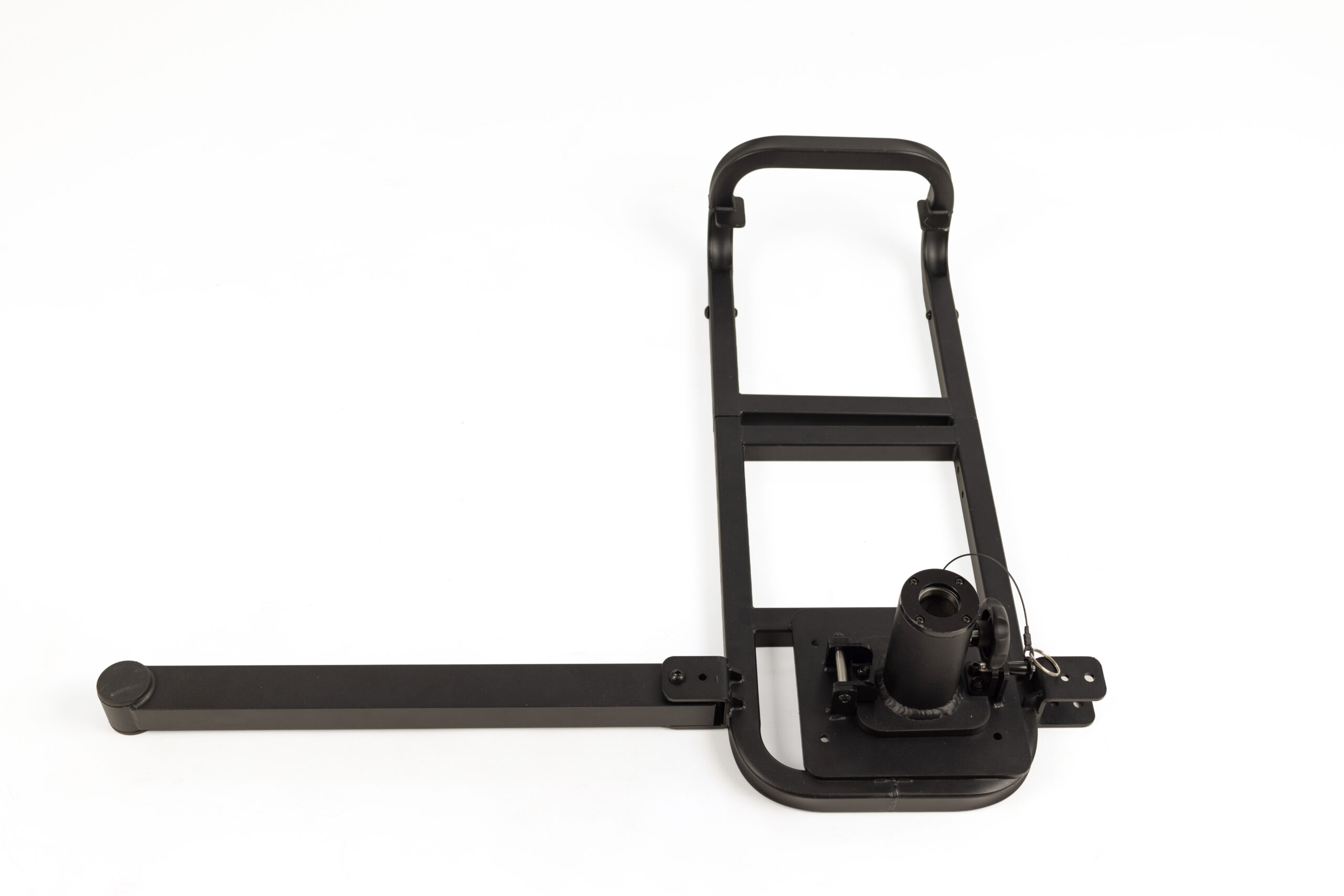

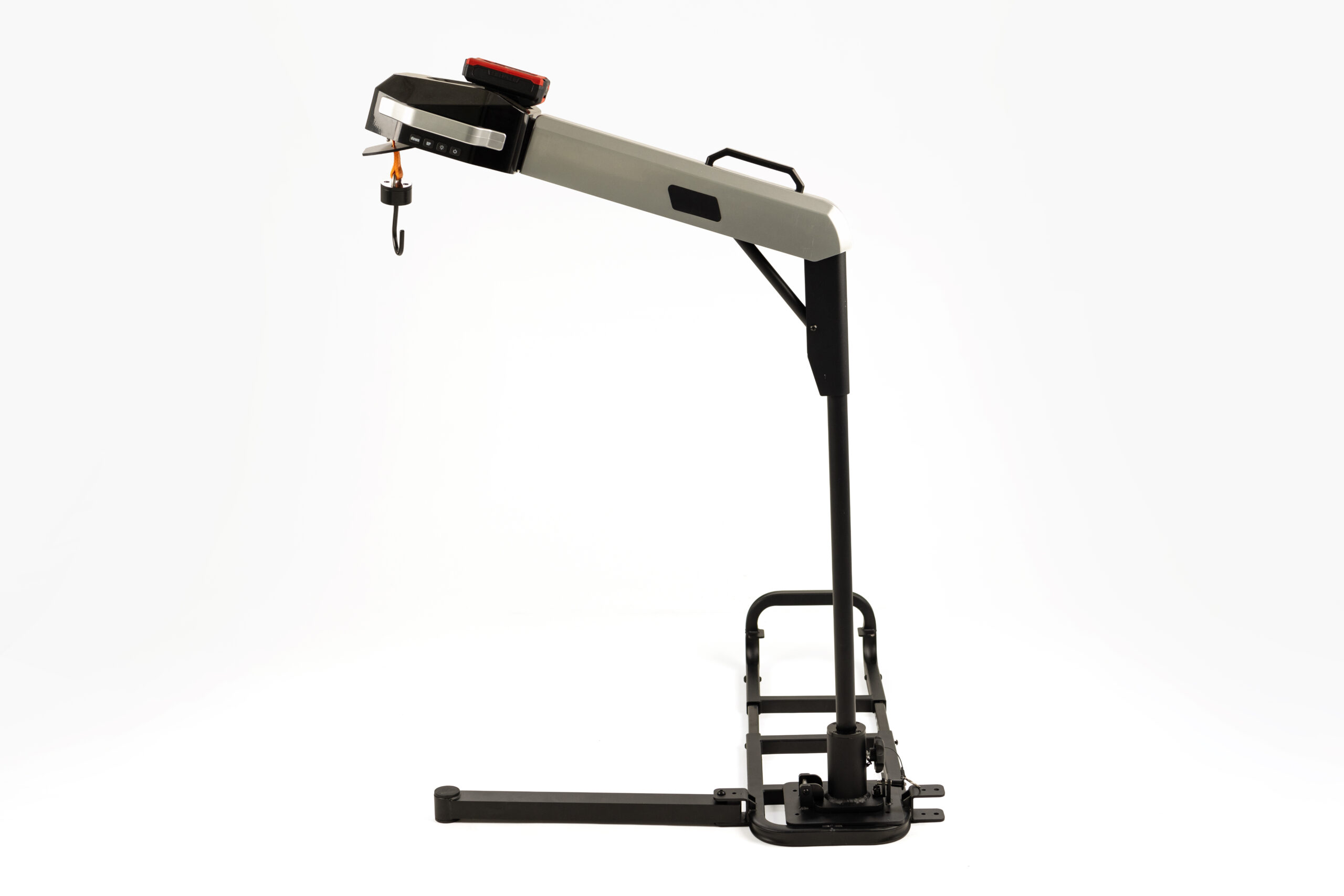

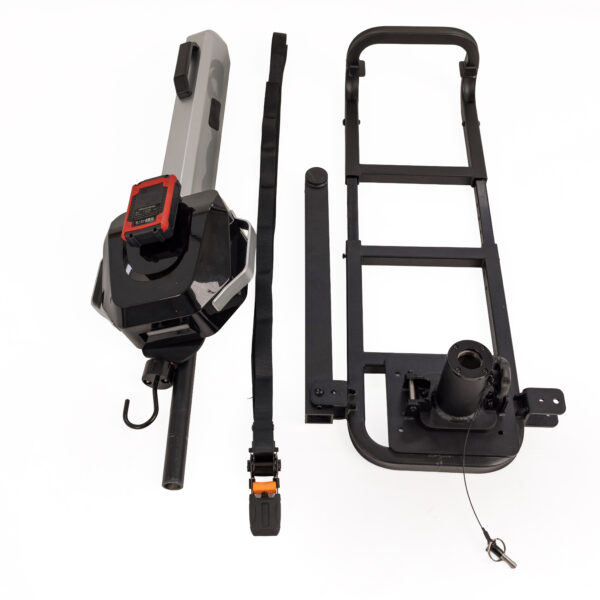

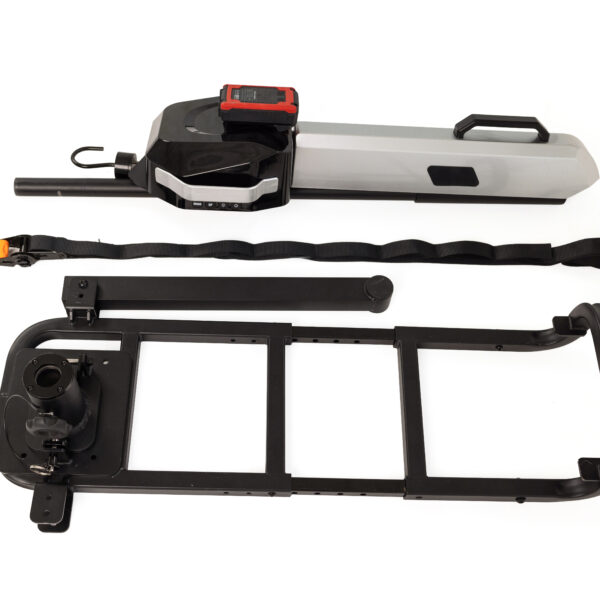

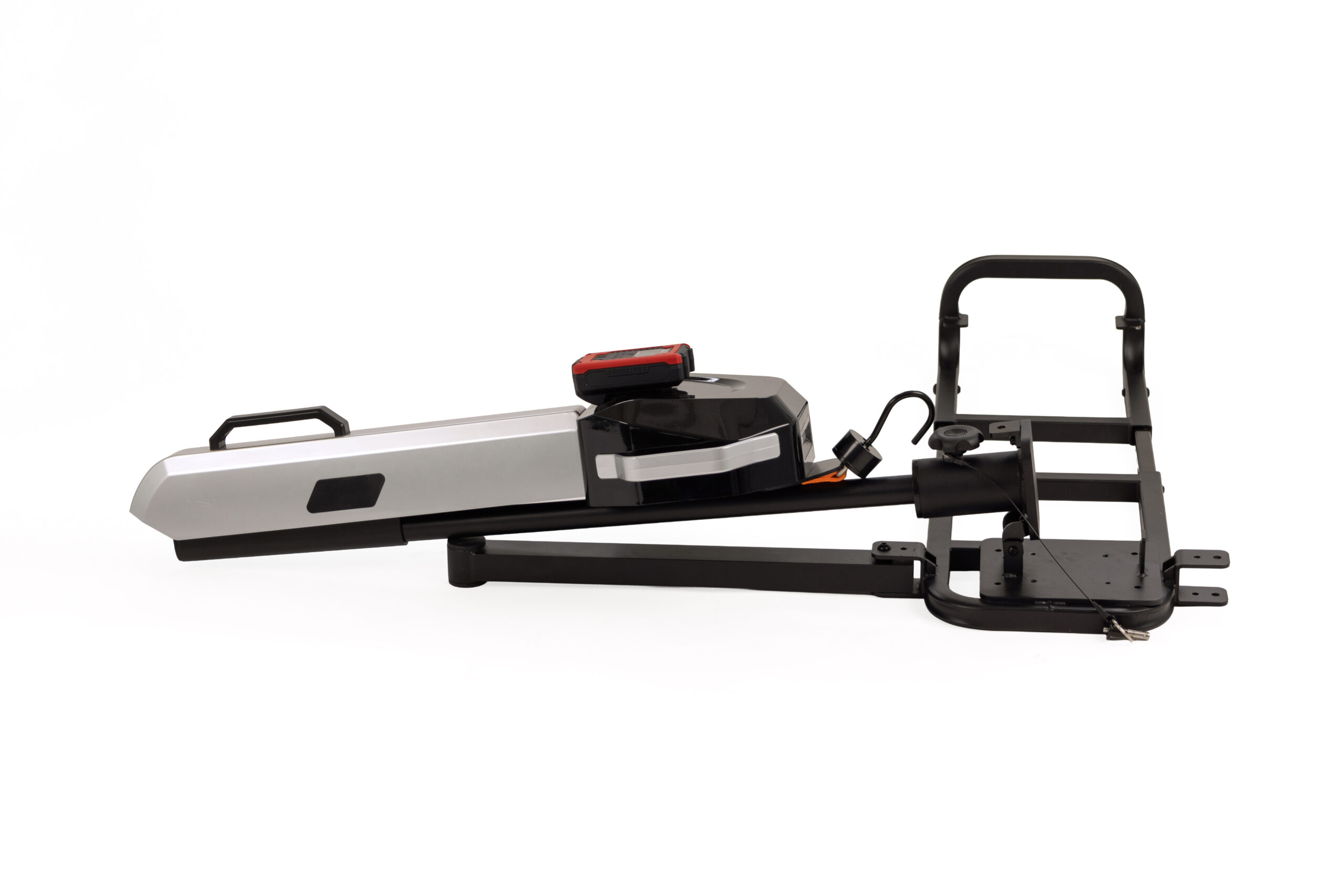

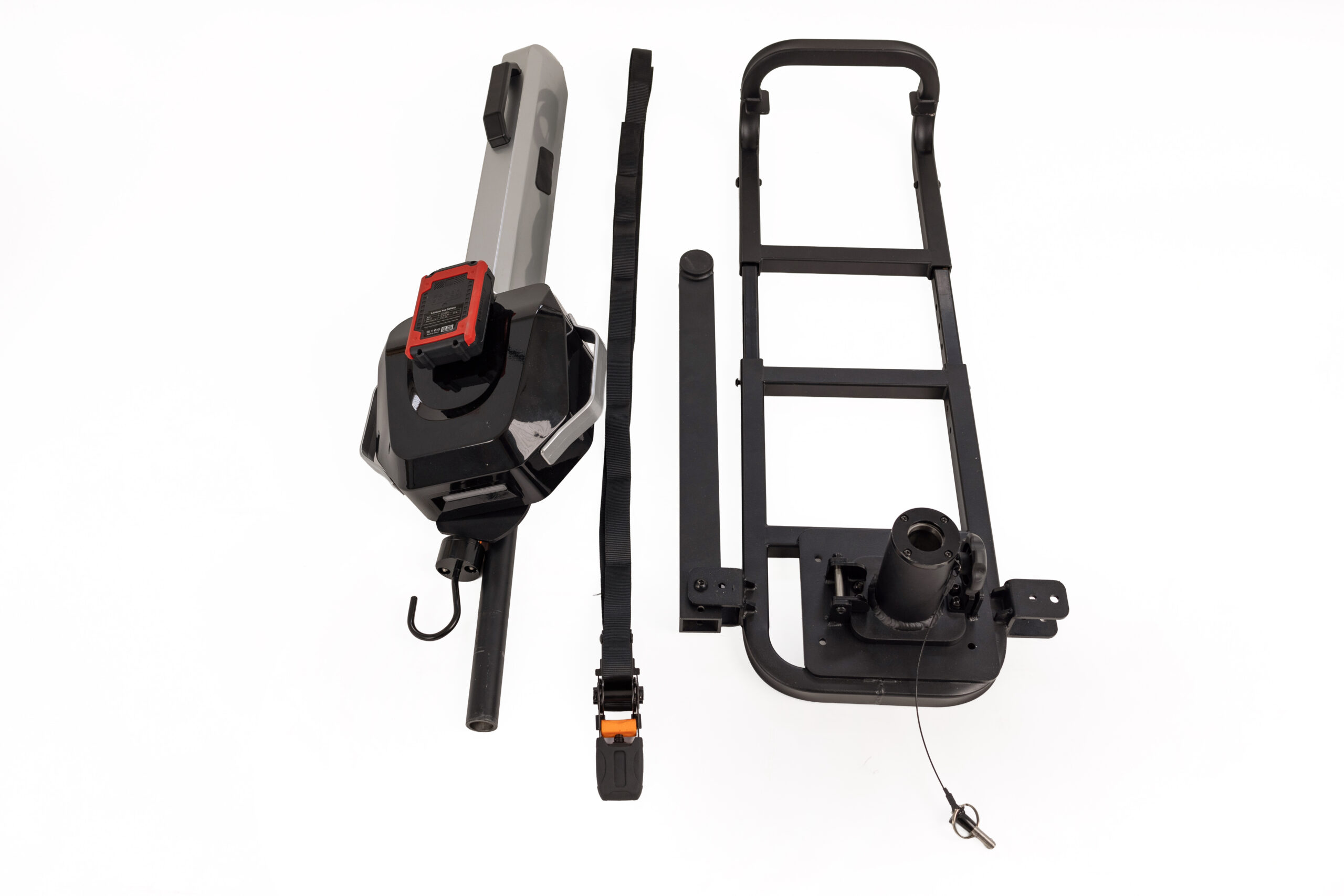

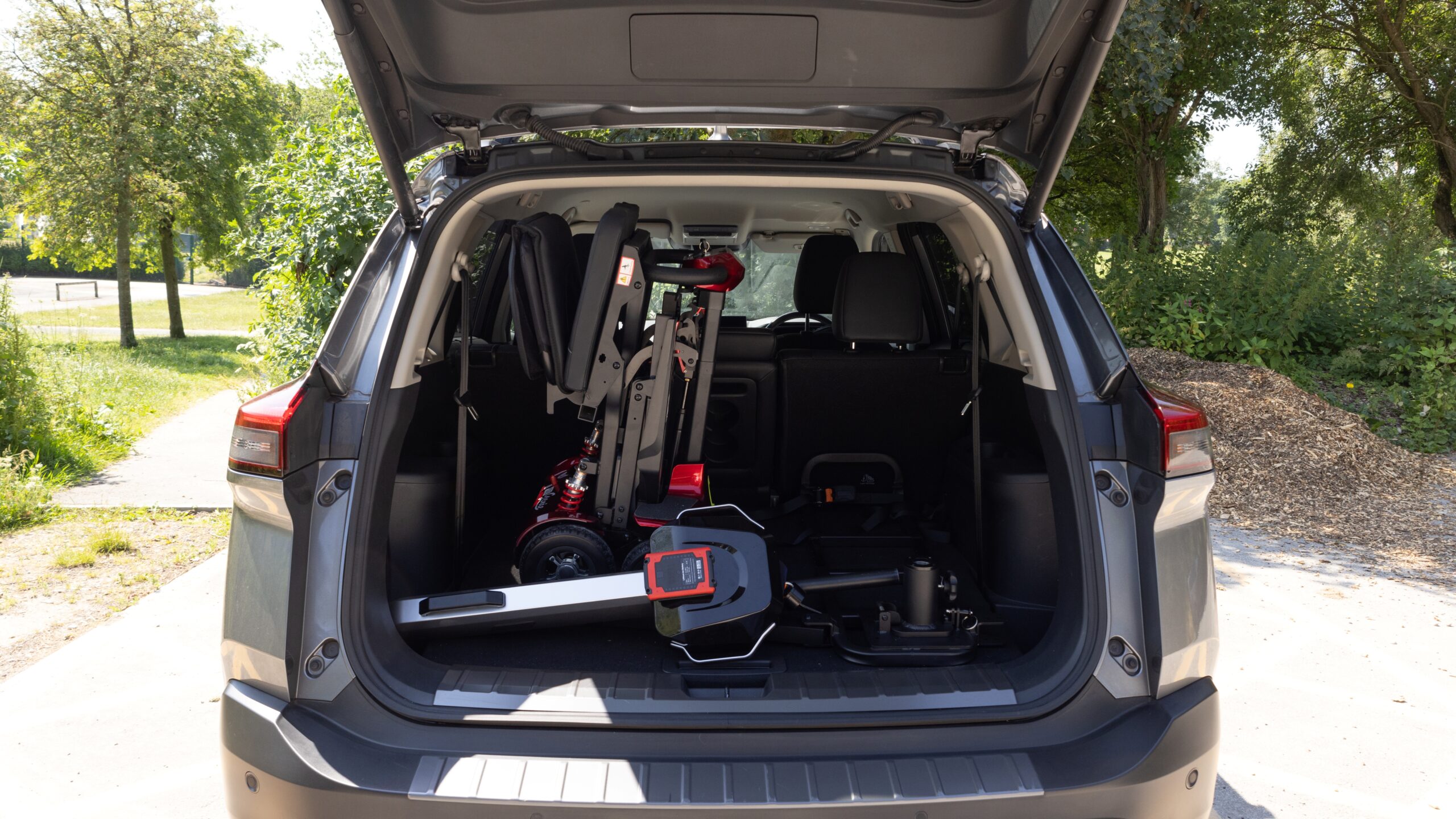

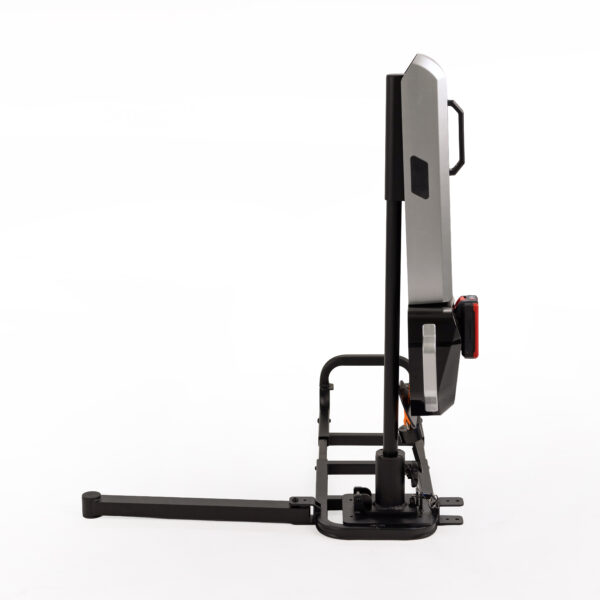

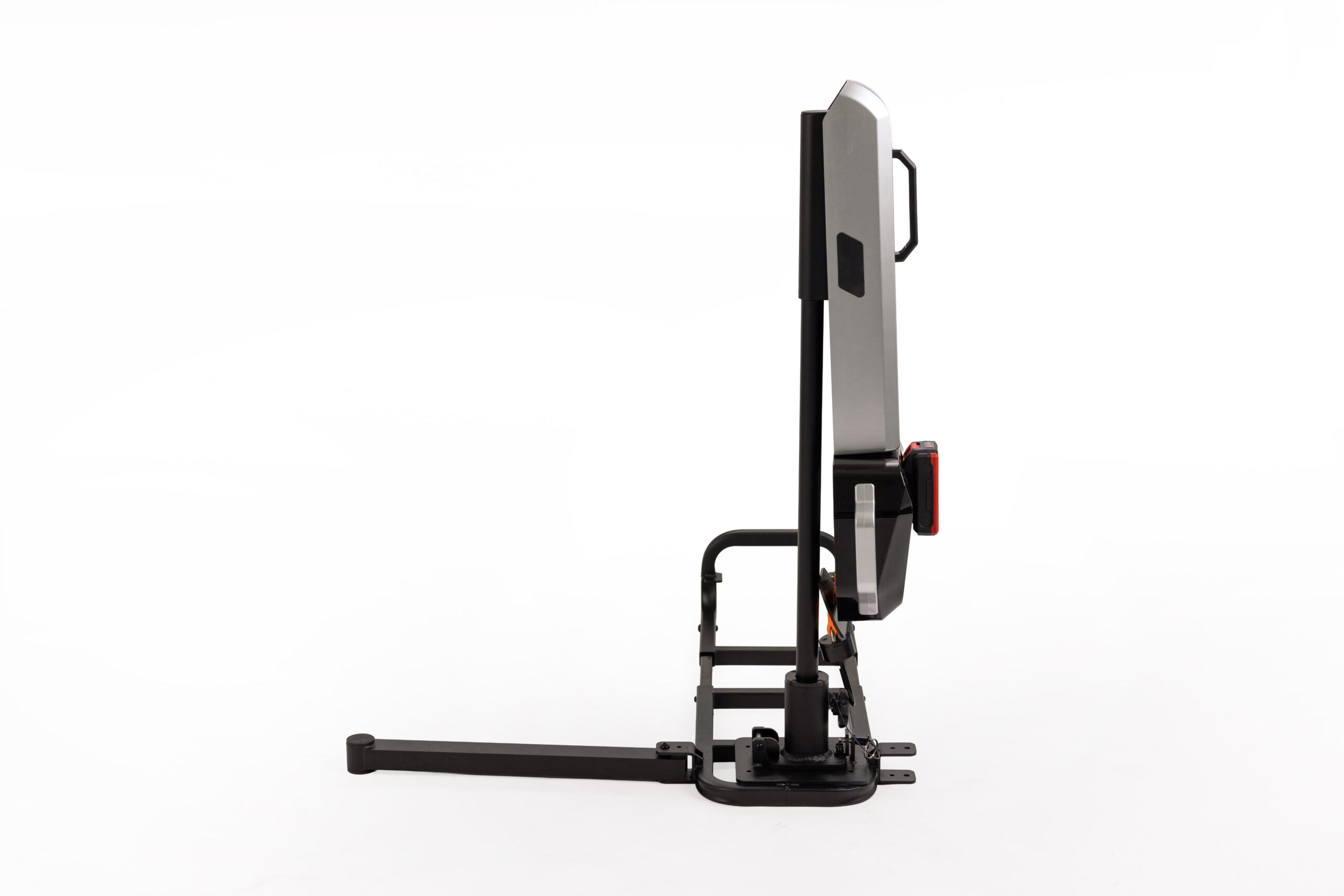

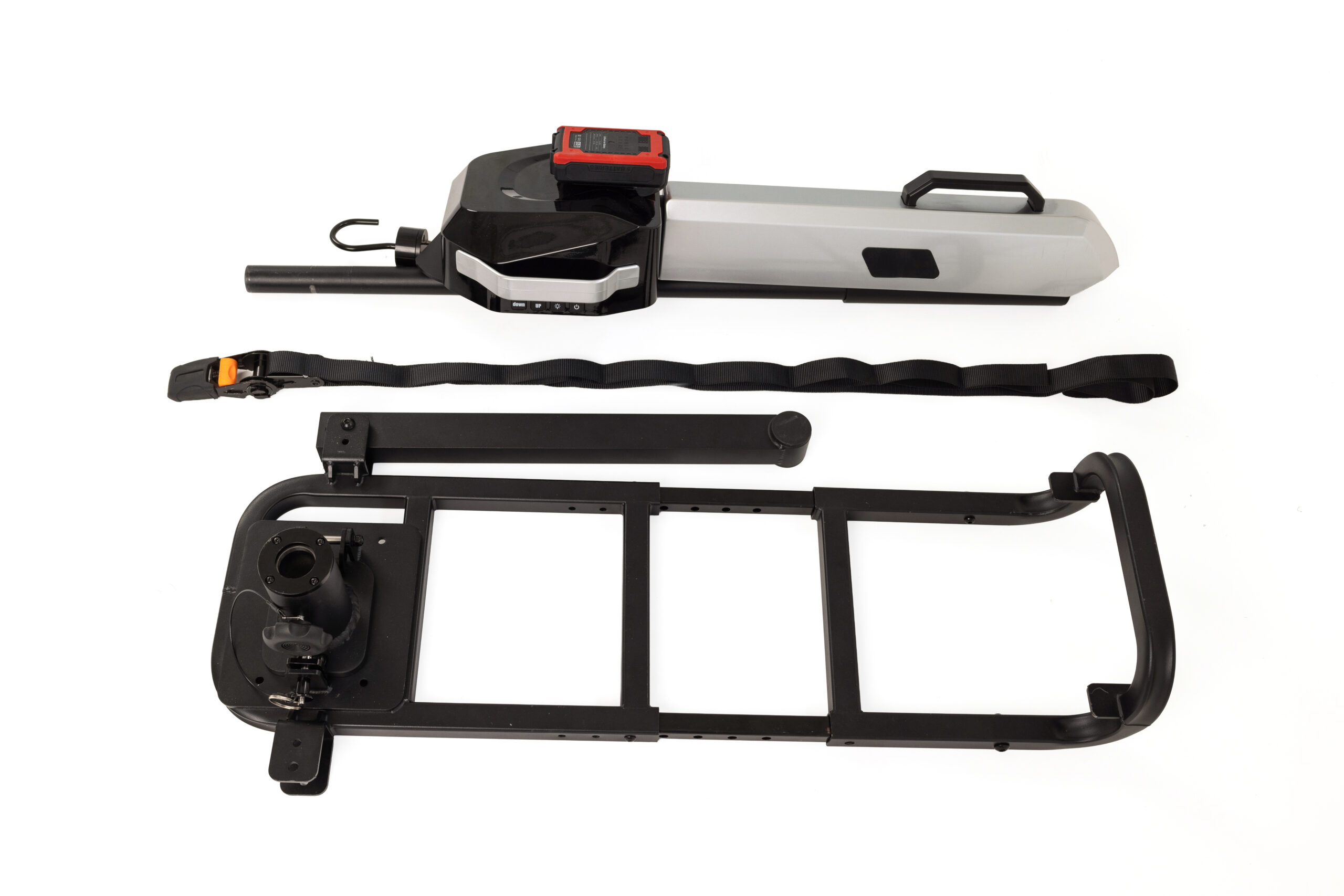

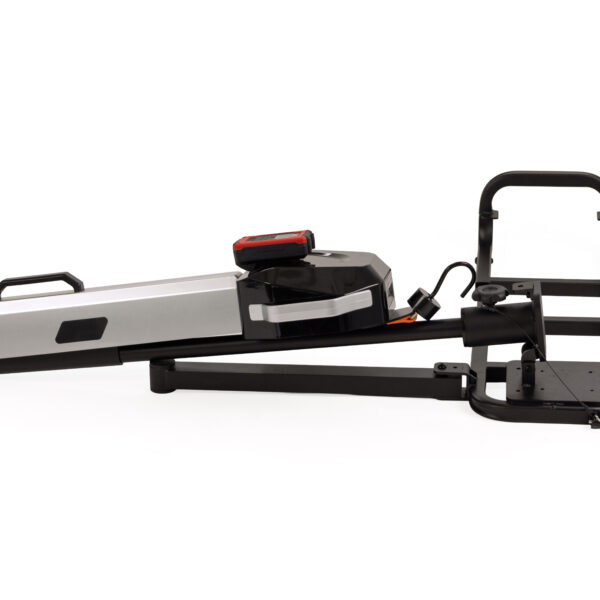

When you're not using it, the Atlas 4 folds down with a collapsible lifting arm and removable boom, packing into a space of roughly 35.6 by 40 by 39 inches. At about 31 lbs total, one person can move and stow it between uses without wrestling a bulky, awkward unit into place.

Everyday Moments the Atlas 4 Makes Easier

Think about the trips that usually take planning: a weekend visit to family, a spontaneous stop on the way home, a day out that would otherwise mean working around someone’s schedule to help you load up. Errands that used to require timing around when someone else was free become something you can just decide to do.

The Atlas 4 turns those into trips you don’t have to think twice about. It’s built for the in-between moments of daily life, the grocery run, the coffee with a friend, the last-minute decision to catch a matinee, not just the big planned outings. Getting your scooter or wheelchair into the car becomes routine instead of a hurdle, which changes how often you actually go out rather than just how easily you do when you finally do.

Available from: $1,885.00

MSRP: $2,095.00

The Atlas 4 — Up Close

See the features that will take your mobility independence to the next level.

This quick close-up showcases the Atlas 4’s intelligent engineering in action. Watch how easily the car lift is unfolded how compactly it can be stored when you are ready to travel.

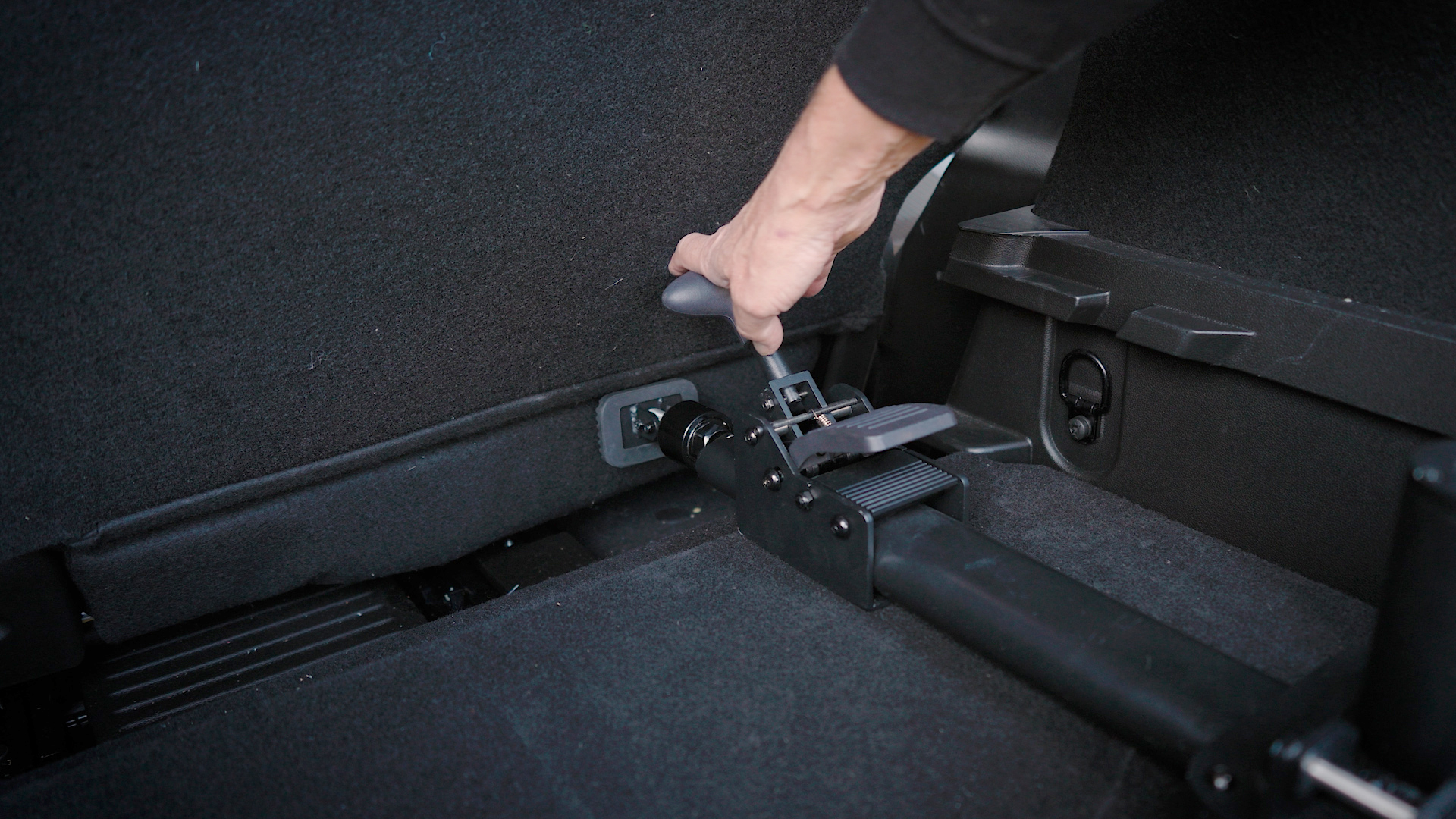

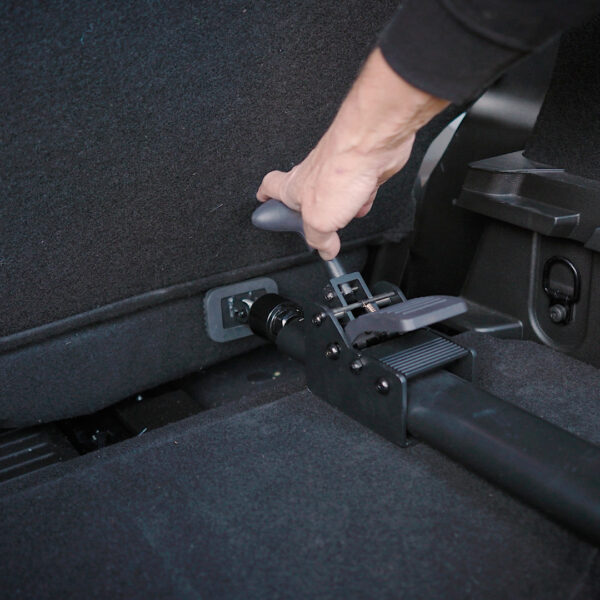

You will get a detailed look at the super easy strap installation, innovatively designed to safely secure the lift into almost any vehicle without the need for permanent modifications.

The video also highlights the simple side panel buttons for operating the lift and activating the downward light switch. Plus, we demonstrate how these exact same operations can be utilized entirely via remote control, reducing physical strain and unnecessary complexity.

It’s a fast, simple look at an innovation designed to empower dignity, convenience, and freedom.

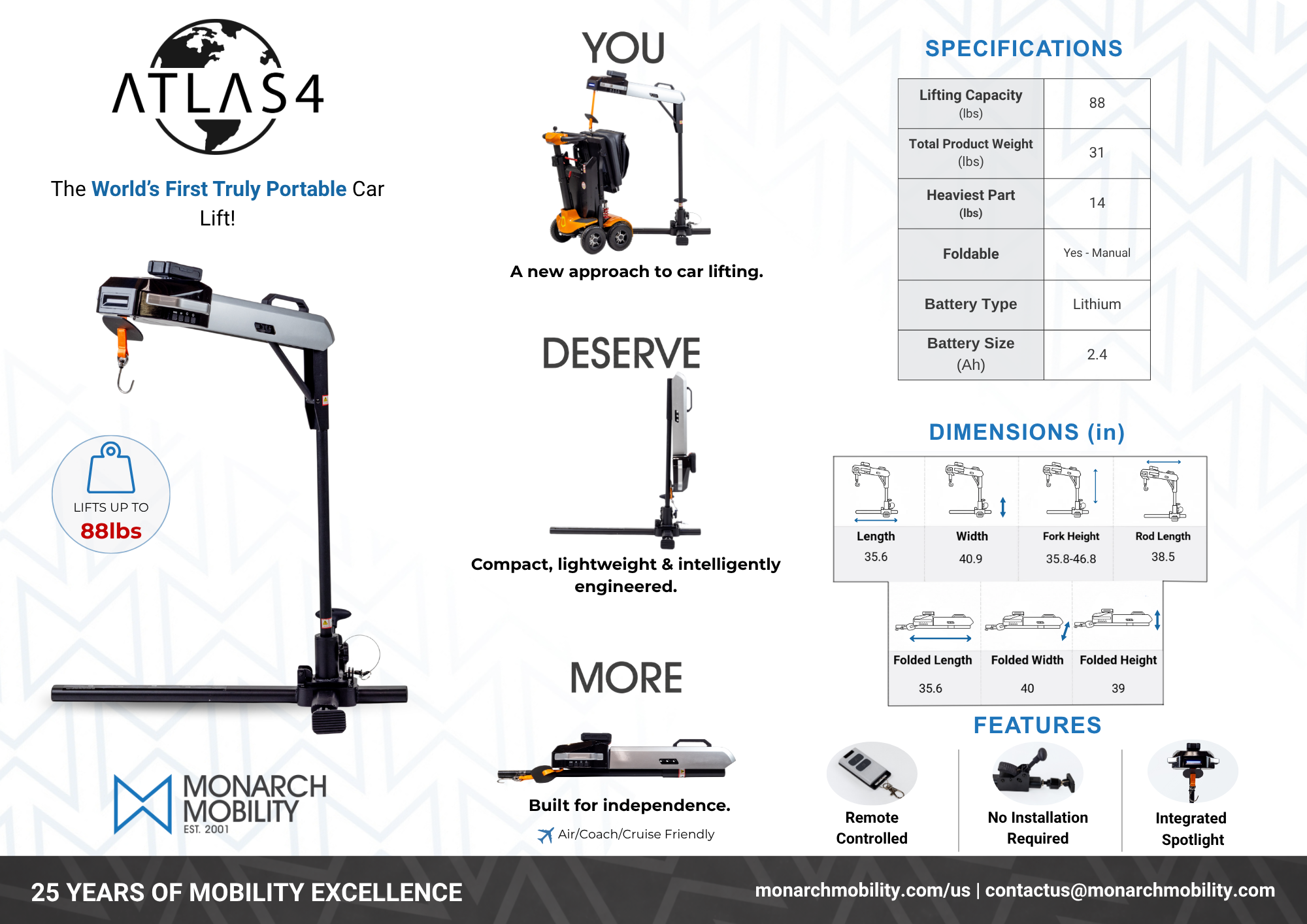

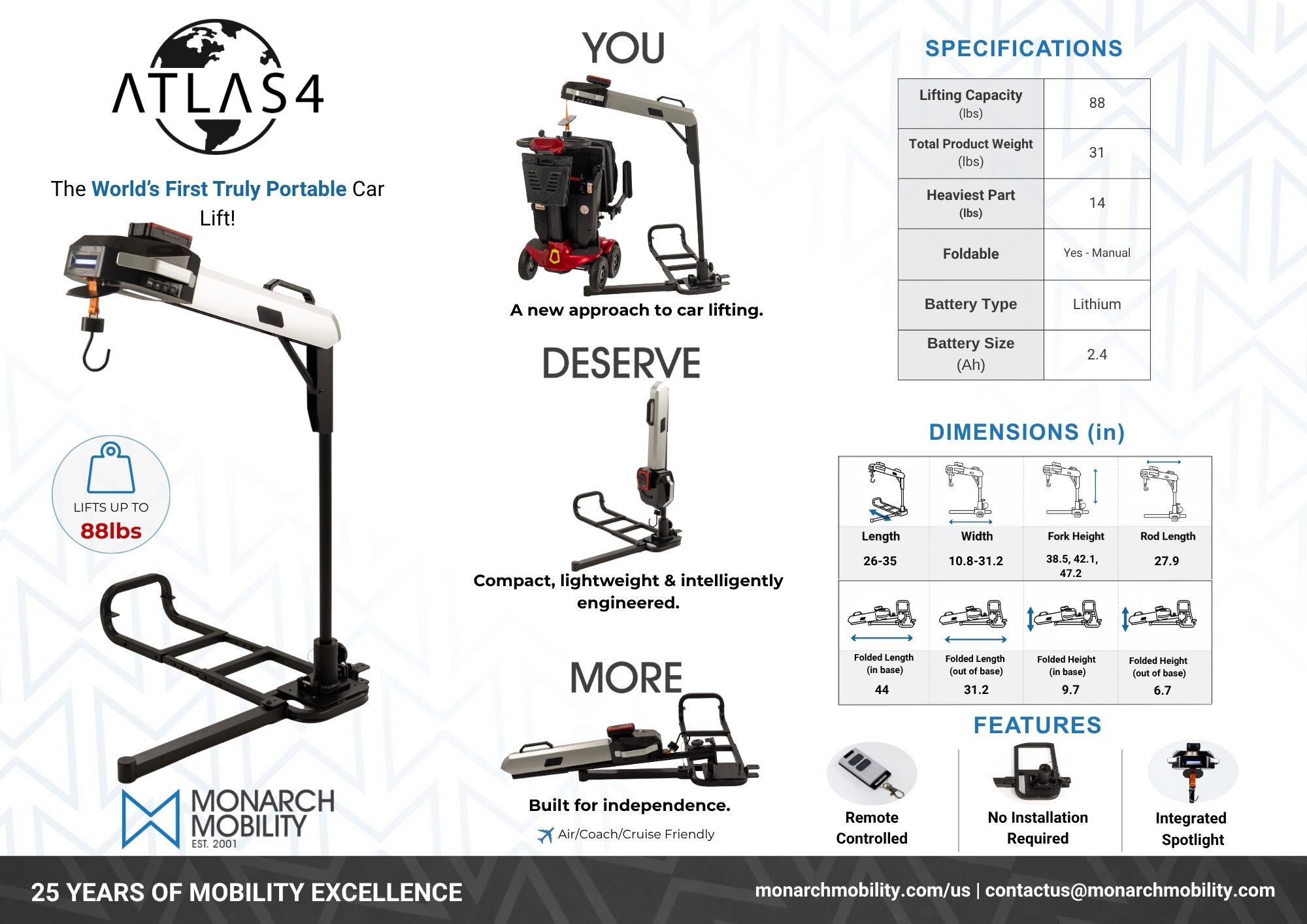

Technical Specification

Feature

Specification

Product Weight (lbs)
31
Foldable
Yes - Manual
Base Weight (Round base & Supporting base) (lbs)
11
Battery Type
Lithium
Power Supply
24V external Battery, power port of scooter or wheelchair

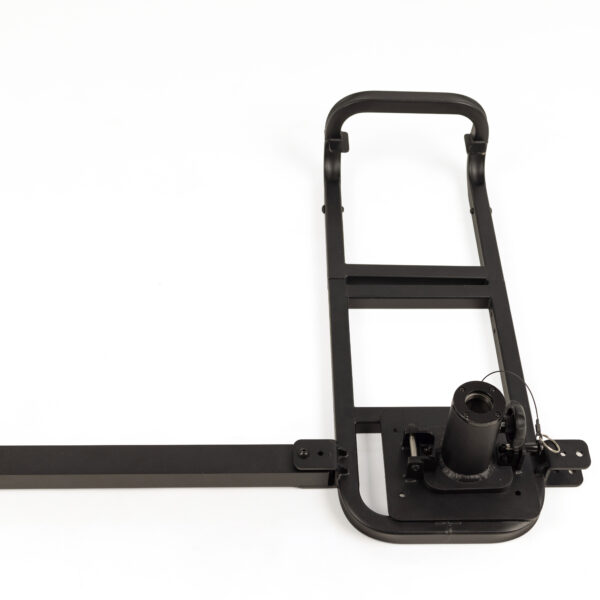

Adjustable Base Length
26-36"
Base Width - balance arm extended
31.3"
Fork Height (minimum vertical operation clearance)
38.5"
Boom Operating Height
39/43/46"
Boom Length
28"
Folded Boom & Fork Width (in plate)
37"

Feature

Specification

Max User Weight (lbs)
88
Base Weight (lbs)
18.5
Boom Weight (lbs)
15
Battery Size (Ah)
2.6
Working Voltage
DC24V
Controls
Remote or Button Panel
Power Line Length
3M
Base Width - balance arm folded
14.1"
Base Positioning
Directly against the back of a second- or third-row passenger seat.
Lift Mount Position
Base plate at the tailgate end of the base
Folded Boom & Fork Width (in plate)
44" (across)

Specifications are correct at the time of publication and may be updated as part of our ongoing product development.
Performance figures such as speed and range will vary depending on factors including user weight, terrain, battery condition and tyre pressure.
Due to manufacturing tolerances, certain dimensions may vary slightly.
These products are airline compliant. In some cases, airlines may ask for battery safety documentation. If supporting information such as a UN 38.3 test summary is required, please contact your dealer for assistance.
